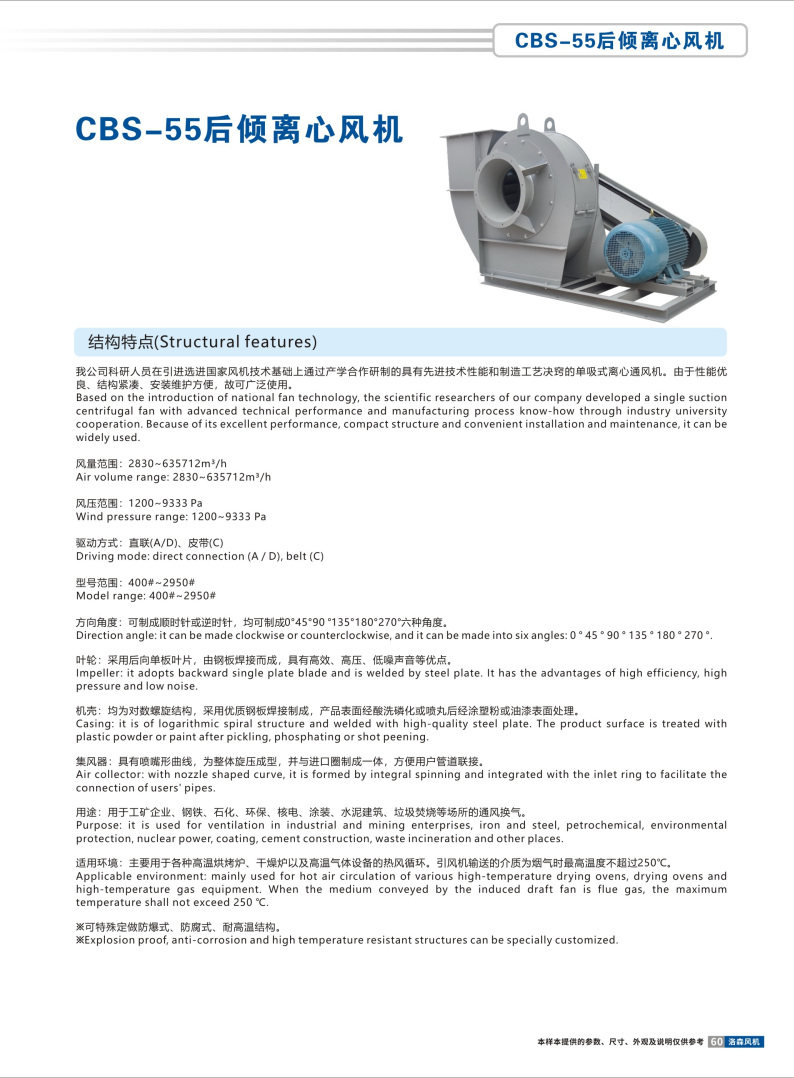

CBS-55后傾離心風機

我公司科研人員在引進選進國家風機技術基礎上通過產學合作研制的具有先進技術性能和制造工藝決竅的單吸式離心通風機。由于性能優良、結構緊湊、安裝維護方便，故可廣泛使用。

Based on the introduction of national fan technology, the scientific researchers of our company developed a single suction centrifugal fan with advanced technical performance and manufacturing process know-how through industry university cooperation. Because of its excellent performance, compact structure and convenient installation and maintenance, it can be widely used.

風量范圍：2830~635712m3/h

Air volume range: 2830~635712m3/h

風壓范圍：1200~9333 Pa

Wind pressure range: 1200~9333 Pa

驅動方式：直聯(A/D)、皮帶(C)

Driving mode: direct connection (A / D), belt (C)

型號范圍：400#~2950#

Model range: 400#~2950#

方向角度：可制成順時針或逆時針，均可制成0°45°90 °135°180°270°六種角度。

Direction angle: it can be made clockwise or counterclockwise, and it can be made into six angles: 0 ° 45 ° 90 ° 135 ° 180 ° 270 °.

葉輪：采用后向單板葉片，由鋼板焊接而成，具有高效、高壓、低噪聲音等優點。

Impeller: it adopts backward single plate blade and is welded by steel plate. It has the advantages of high efficiency, high pressure and low noise.

機殼：均為對數螺旋結構，采用優質鋼板焊接制成，產品表面經酸洗磷化或噴丸后經涂塑粉或油漆表面處理。

Casing: it is of logarithmic spiral structure and welded with high-quality steel plate. The product surface is treated with plastic powder or paint after pickling, phosphating or shot peening.

集風器：具有噴嘴形曲線，為整體旋壓成型，并與進口圈制成一體，方便用戶管道聯接。

Air collector: with nozzle shaped curve, it is formed by integral spinning and integrated with the inlet ring to facilitate the connection of users' pipes.

用途：用于工礦企業、鋼鐵、石化、環保、核電、涂裝、水泥建筑、垃圾焚燒等場所的通風換氣。

Purpose: it is used for ventilation in industrial and mining enterprises, iron and steel, petrochemical, environmental protection, nuclear power, coating, cement construction, waste incineration and other places.

適用環境：主要用于各種高溫烘烤爐、干燥爐以及高溫氣體設備的熱風循環。引風機輸送的介質為煙氣時最高溫度不超過250℃。

Applicable environment: mainly used for hot air circulation of various high-temperature drying ovens, drying ovens and high-temperature gas equipment. When the medium conveyed by the induced draft fan is flue gas, the maximum temperature shall not exceed 250 ℃.

※可特殊定做防爆式、防腐式、耐高溫結構。

※Explosion proof, anti-corrosion and high temperature resistant structures can be specially customized.
