G3-48前傾離心風機
產品分類：前傾離心風機
點擊次數：1109 次
上架時間：2021-12-16 14:18
全國服務熱線：020-84913508 / 020-84918260
我要詢價詳細介紹

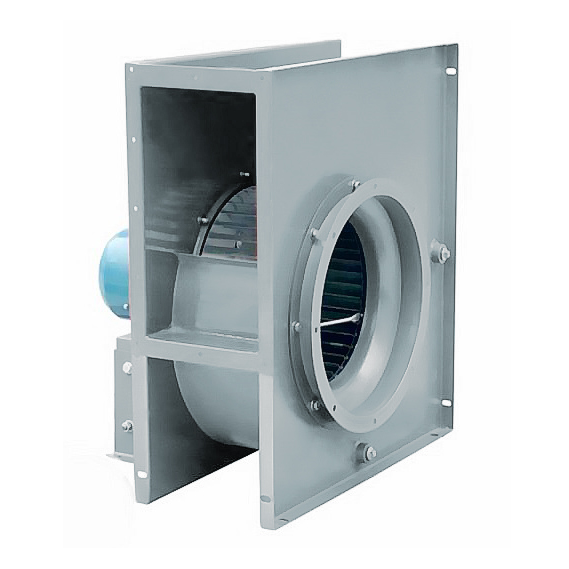

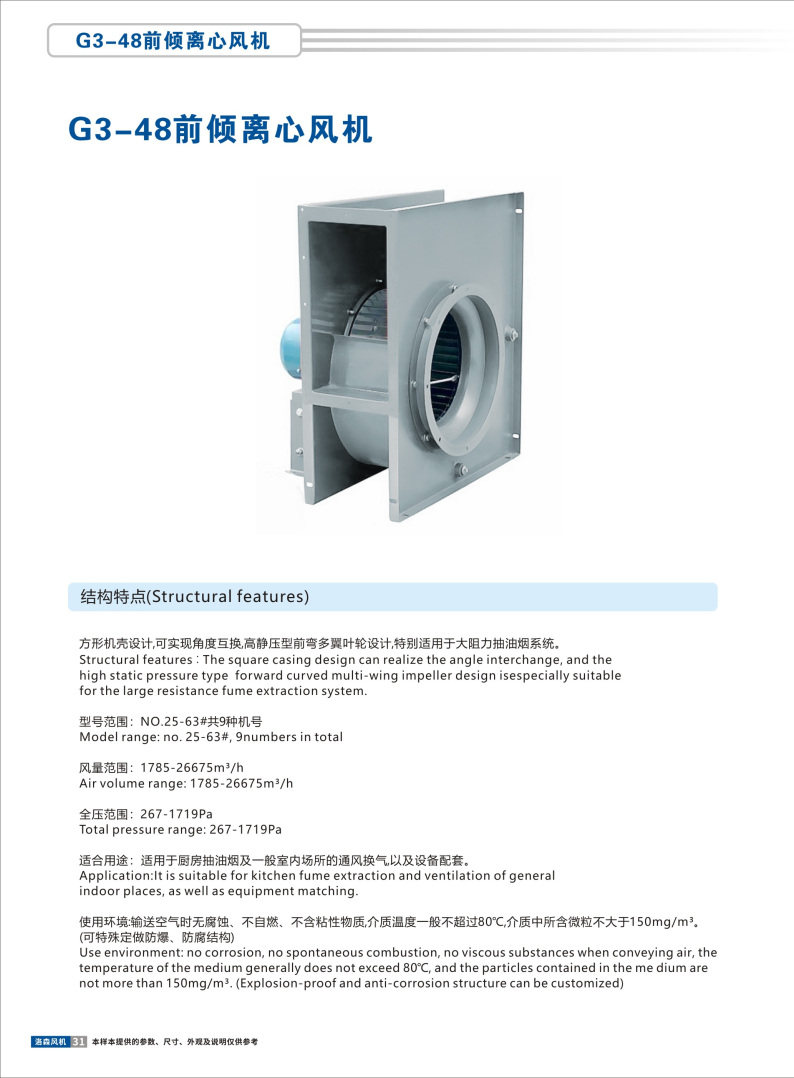

G3-48前傾離心風機
結構特點：方形機殼設計,可實現角度互換,高靜壓型前彎多翼葉輪設計,特別適用于大阻力抽油煙系統。
Structural features：The square casing design can realize the angle interchange, and the high static pressure type forward curved multi-wing impeller design is especially suitable for the large resistance fume extraction system.
型號范圍：NO.25-63#共9種機號
Model range: no. 25-63#, 9numbers in total
風量范圍：1785-26675m3/h
Air volume range: 1785-26675m3/h
全壓范圍：267-1719Pa
Total pressure range: 267-1719Pa
適合用途：適用于廚房抽油煙及一般室內場所的通風換氣,以及設備配套。
Application:It is suitable for kitchen fume extraction and ventilation of general indoor places, as well as equipment matching.
使用環境:輸送空氣時無腐蝕、不自燃、不含粘性物質,介質溫度一般不超過80%℃,介質中所含微粒不大于150mg/m3。(可特殊定做防爆、防腐結構)
Use environment: no corrosion, no spontaneous combustion, no viscous substances when conveying air, the temperature of the medium generally does not exceed 80%℃, and the particles contained in the medium are not more than 150mg/m3. (Explosion-proof and anti-corrosion structure can be customized)
