CR-28高壓離心風機
產品分類：高壓離心風機
點擊次數：964 次
上架時間：2021-12-16 11:03
全國服務熱線：020-84913508 / 020-84918260
我要詢價詳細介紹

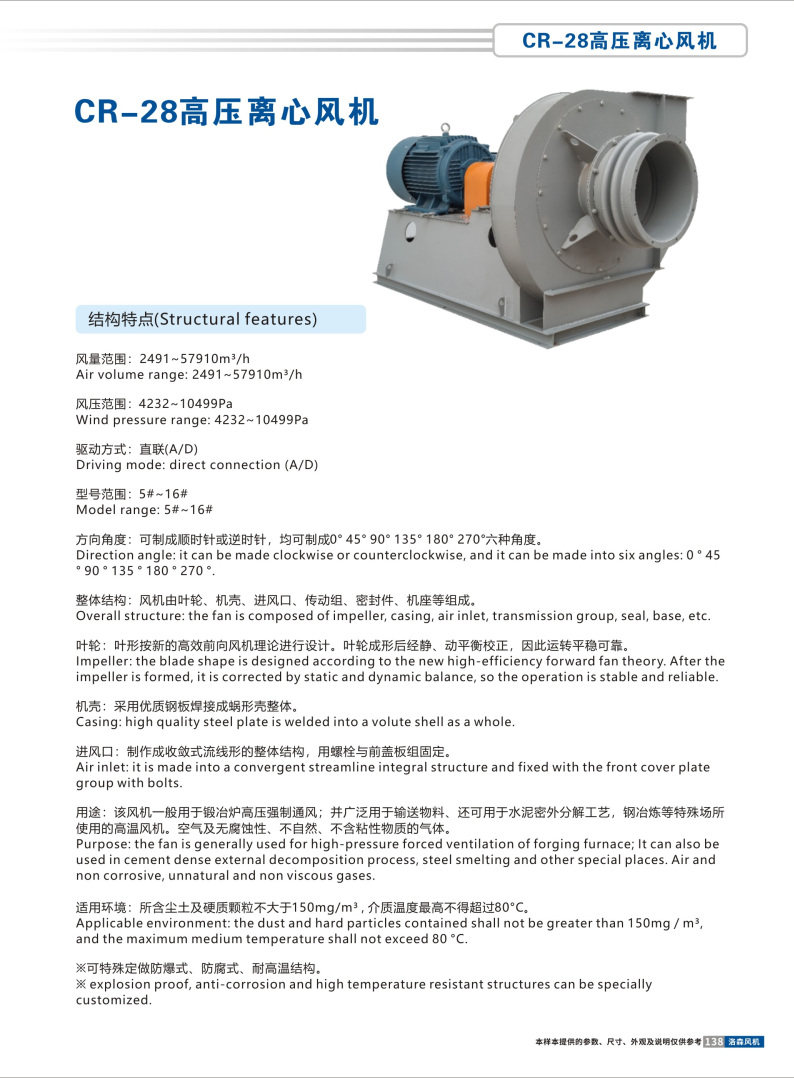

CR-28高壓離心風機
風量范圍： 2491~57910m3/h
Air volume range: 2491~57910m3/h
風壓范圍： 4232~10499Pa
Wind pressure range: 4232~10499Pa
驅動方式：直聯(A/D)
Driving mode: direct connection (A/D)
型號范圍：5#~16#
Model range: 5#~16#
方向角度：可制成順時針或逆時針，均可制成0° 45° 90° 135° 180° 270°六種角度。
Direction angle: it can be made clockwise or counterclockwise, and it can be made into six angles: 0 ° 45 ° 90 ° 135 ° 180 ° 270 °.

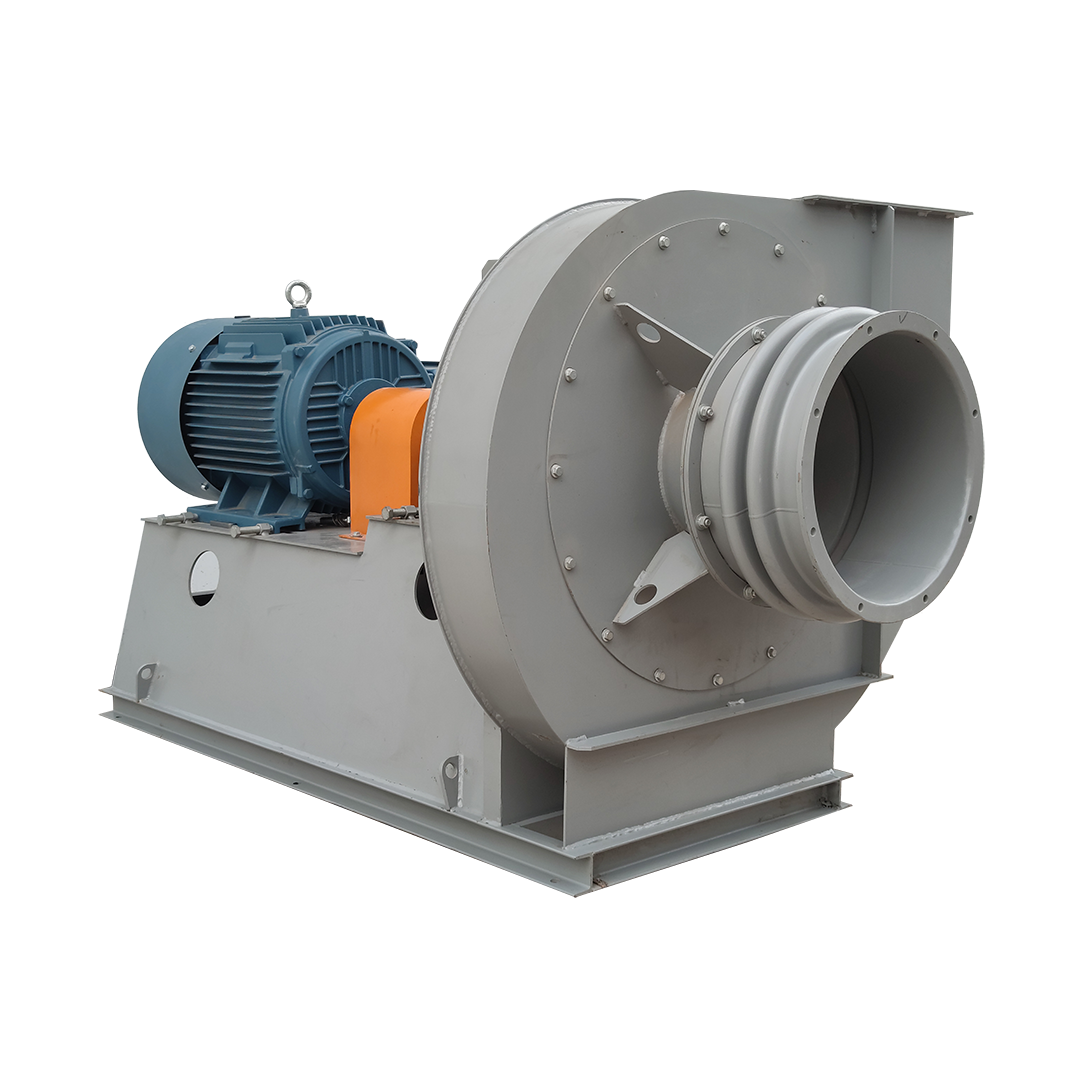

整體結構：風機由葉輪、機殼、進風口、傳動組、密封件、機座等組成。
Overall structure: the fan is composed of impeller, casing, air inlet, transmission group, seal, base, etc.
葉輪：葉形按新的高效前向風機理論進行設計。葉輪成形后經靜、動平衡校正，因此運轉平穩可靠。
Impeller: the blade shape is designed according to the new high-efficiency forward fan theory. After the impeller is formed, it is corrected by static and dynamic balance, so the operation is stable and reliable.
機殼：采用優質鋼板焊接成蝸形殼整體。
Casing: high quality steel plate is welded into a volute shell as a whole.
進風口：制作成收斂式流線形的整體結構，用螺栓與前蓋板組固定。
Air inlet: it is made into a convergent streamline integral structure and fixed with the front cover plate group with bolts.
用途：該風機一般用于鍛冶爐高壓強制通風；并廣泛用于輸送物料、還可用于水泥密外分解工藝，鋼冶煉等特殊場所使用的高溫風機?？諝饧盁o腐蝕性、不自然、不含粘性物質的氣體。
Purpose: the fan is generally used for high-pressure forced ventilation of forging furnace; It can also be used in cement dense external decomposition process, steel smelting and other special places. Air and non corrosive, unnatural and non viscous gases.
適用環境：所含塵土及硬質顆粒不大于150mg/m3，介質溫度最高不得超過80°C。
Applicable environment: the dust and hard particles contained shall not be greater than 150mg / m3, and the maximum medium temperature shall not exceed 80 ° C.
※可特殊定做防爆式、防腐式、耐高溫結構。
※ explosion proof, anti-corrosion and high temperature resistant structures can be specially customized.
